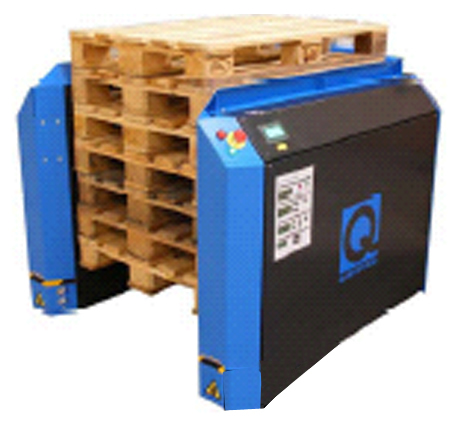

Pallet stacker standard

Pallet stacker




Pallet Stacker Standard

Forklift protection barriers, strengthened back.
Shipment 1 parcel, 1600x1500x2400 mm, 600 kg
Supplied with Overfill sensor
Bolts for fastening to the floor
Measurements L 1.600 x W 1.370 x H 2.170 mm
Colours Standard: RAL 5021 blue/RAL 7021 anthracite
Can be supplied in other RAL colours
Power 230 V
Capacity 14 pallets/max 500 kg
Pallet size EURO L 1.200 x W 800 mm


• The dispenser is all-electric and needs no compressed air.
• Equipped with safety top section.
• With photo cells at the bottom.
• Is primarily designed for EURO pallets but can also be supplied for other pallet types.
• With a very user-friendly control panel.
• Reliable and accessible mechanics that require very little maintenance.
• Can be equipped with strengthened back.
• Can be equipped with forklift protection barriers.
• Can be supplied as a galvanised version.
